Wire Nail Making Machine:
Nails Making Process
Wire Nail Making Machine
Automatic Nails Machine
Wire Nail Making Machine

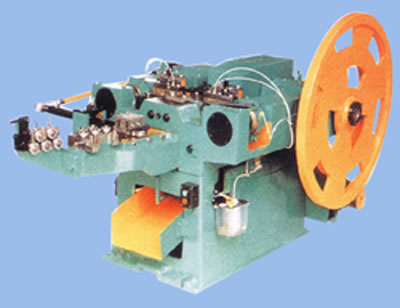

Wire Nail Making Machine 001

This new type machine adopts plunger and oil pipe lubricating structure so as to ensure the features

such as high speed, low noise and less impact. Especially, it can make the high quality of asphalt felt

nails and   other special nails used for high speed coil collator and coil nailers.

Technical Specifications
Technical data Model 6.5C 5.5C 4.5C 3.4C 2.8C 1.6C
Dia of nail ( max.) mm 8.0 5.5 4.5 3.4 2.8 1.6
Dia of nail ( min.) mm 4.1 3.7 2.8 1.8 1.2 0.9
Length of nail (max.) mm 220 150 100 75 50 25
Length of nail (min.) mm 100 100 50 30 16 9
Designed capacity pcs/min 180 180 280 300 320 460
Motor power kw 11 5.5 4 3 2.2 1.5
Weight(approx.) kg 5000 2500 2000 1800 1450 1200
Overall dimensions mm 3220x1840
x1550
2400x1700
x1650
2200x1600
x1650
2000x1400
x1400
1700x1300
x1400
1500x1300
x1200

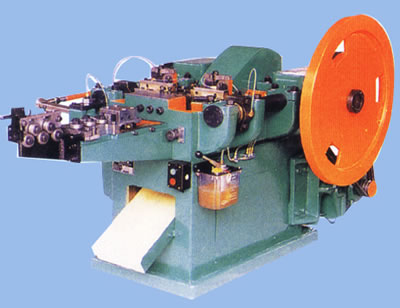

Wire Nail Making Machine 002

Aplication:

This new type machine adopts plunger and oil pipe lubricating structure so as to ensure the features such as high speed, low noise and less impact. Especially,  it can make the high quality of asphalt felt nails and other special nails used for high speed coil collator and coil nailers.

Technical Specifications

Technical data Model 6.5C 5.5C 4.5C 3.4C 2.8C 1.6C
Dia of nail ( max.) mm 8.0 5.5 4.5 3.4 2.8 1.6
Dia of nail ( min.) mm 4.1 3.7 2.8 1.8 1.2 0.9
Length of nail (max.) mm 220 150 100 75 50 25
Length of nail (min.) mm 100 100 50 30 16 9
Designed capacity pcs/min 180 180 280 300 320 460
Motor power kw 11 5.5 4 3 2.2

1.5

Weight(approx.) kg 5000 2500 2000 1800 1450 1200
Overall dimensions mm 3220x1840
x1550
2400x1700
x1650
2200x1600
x1650
2000x1400
x1400
1700x1300
x1400
1500x1300
x1200
